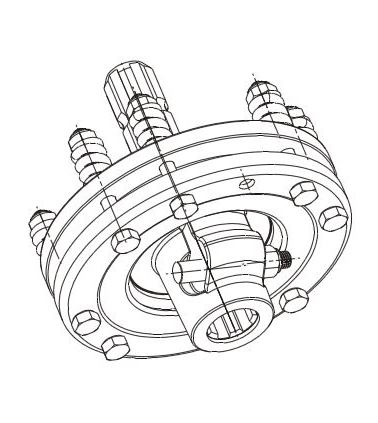

2 FRICTION DISCS

Categories: , ,

Description

(Nm) (inches) (inches) (millimeters)

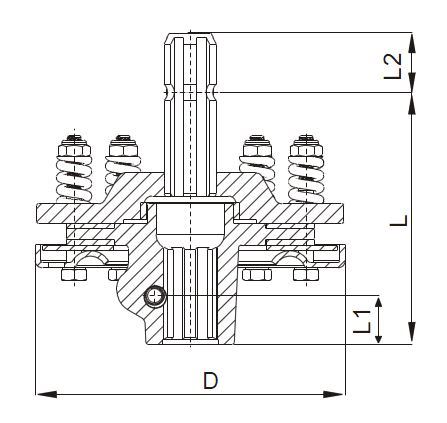

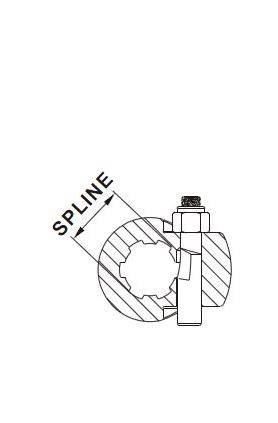

P/N SERIES MAX TORQUE MALE SPLINE FEMALE SPLINE DIM D FRICTION DISC DIM L DIM L1 DIM L2
R16581 N/A 1200 1,3/8″ 6-Spline 1,3/8″ 6-Spline Ø180 Ø140 163 29 38
R16582 N/A 1,3/8″ 6-Spline 1,3/8″ 21-Spline
R16583 N/A 1800 1,3/8″ 6-Spline 1,3/8″ 6-Spline Ø200 Ø160 163 29 38
R16584 N/A 1,3/8″ 6-Spline 1,3/8″ 21-Spline
