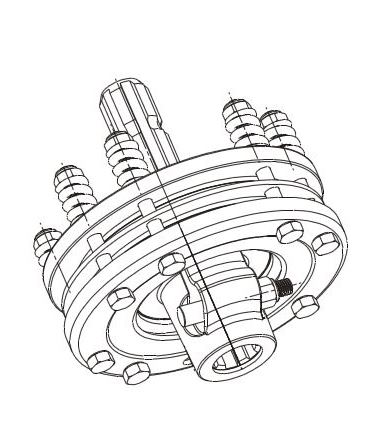

4 FRICTION DISCS

Categories: Friction Clutches (Slip Clutches) Type 2, RPM Transmissions, TORQUE LIMITERS

Description
Seal Kits and Accessories

Description

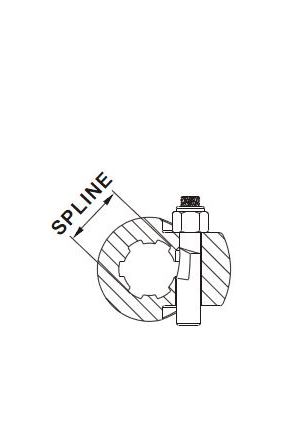

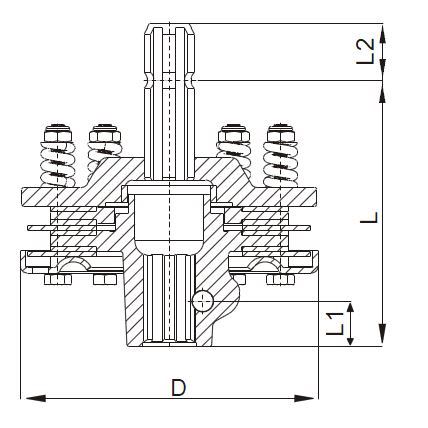

P/N	SERIES	MAX TORQUE	MALE SPLINE	FEMALE SPLINE	DIM D	FRICTION DISC	DIM L	DIM L1	DIM L2
	(Nm)	(inches)	(inches)	(millimeters)
R16591	N/A	2000	1,3/8″ 6-Spline	1,3/8″ 6-Spline	Ø180	Ø140	179	29	38
R16592	N/A	2000	1,3/8″ 6-Spline	1,3/8″ 21-Spline	Ø180	Ø140	179	29	38
R16593	N/A	2500	1,3/8″ 6-Spline	1,3/8″ 6-Spline	Ø200	Ø160	179	29	38
R16594	N/A		1,3/8″ 6-Spline	1,3/8″ 21-Spline
R16595	N/A		1,3/8″ 6-Spline	1,3/4″ 6-Spline
R16596	N/A		1,3/8″ 6-Spline	1,3/4″ 20-Spline
