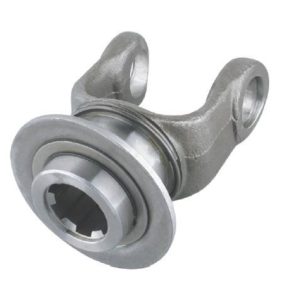

BALL ATTACHMENT YOKES

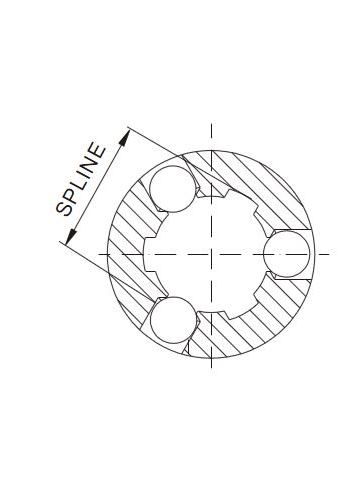

The ball attachment yoke, like the quick
disconnect yoke, is easy to install. Unlike the
quick disconnect yoke, which engages the shaft
with a pin, the ball attachment yoke engages the
shaft with a series of steel balls that can be
disengaged when the sleeve is pushed back.

Categories: , ,

Description

(inches) (millimeters)

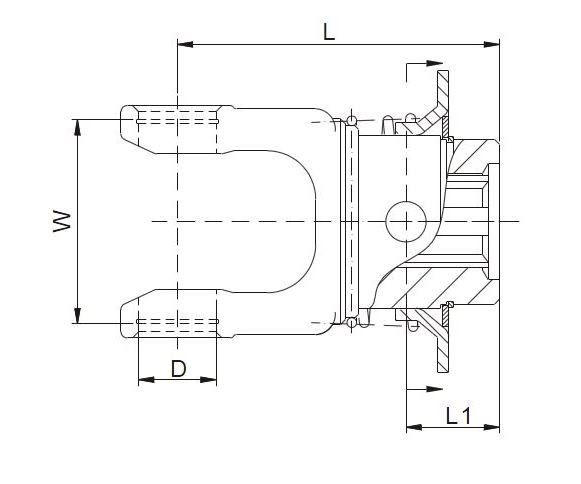

P/N SERIES SPLINE DIM D DIM W DIM L DIM L1
R15361 1 1,3/8″ 6-Spline 22.0 54.0 94 26.5
R15362 1,3/8″ 21-Spline
R15363 2 1,3/8″ 6-Spline 23.8 61.3 102 26.5
R15364 1,3/8″ 21-Spline
R15365 3 1,3/8″ 6-Spline 27.0 70.0 106 26.5
R15366 1,3/8″ 21-Spline
R15367 4 1,3/8″ 6-Spline 27.0 74.6 108 26.5
R15368 1,3/8″ 21-Spline
R15369 5 1,3/8″ 6-Spline 30.2 80.0 113 26.5
R15370 1,3/8″ 21-Spline
R15371 5A 1,3/8″ 6-Spline 32.0 76.0 113 26.5
R15372 1,3/8″ 21-Spline
R15373 6 1,3/8″ 6-Spline 30.2 92.0 120 26.5
R15374 1,3/8″ 21-Spline
R15375 7 1,3/8″ 6-Spline 30.2 106.5 125 26.5
R15376 1,3/8″ 21-Spline
R15377 7A 1,3/8″ 6-Spline 35.0 94.0 120 26.5
R15378 1,3/8″ 21-Spline
R15379 8 1,3/8″ 6-Spline 35.0 106.5 128 26.5
R15380 1,3/8″ 21-Spline
