COLLAR YOKES
COLLAR YOKES - Image 2
COLLAR YOKES - Image 3
,

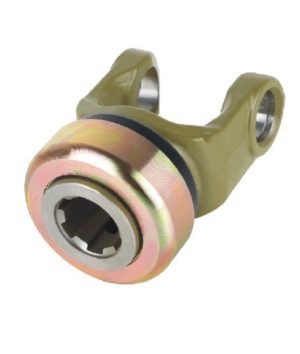

COLLAR YOKES

The collar yoke, like the quick disconnect yoke, is
easy to install. Unlike the quick disconnect yoke,
which engages the shaft with a pin, the collar
yoke engages the shaft with a series of steel
balls that can be disengaged when the collar is
pushed back.

Categories: ,

Description

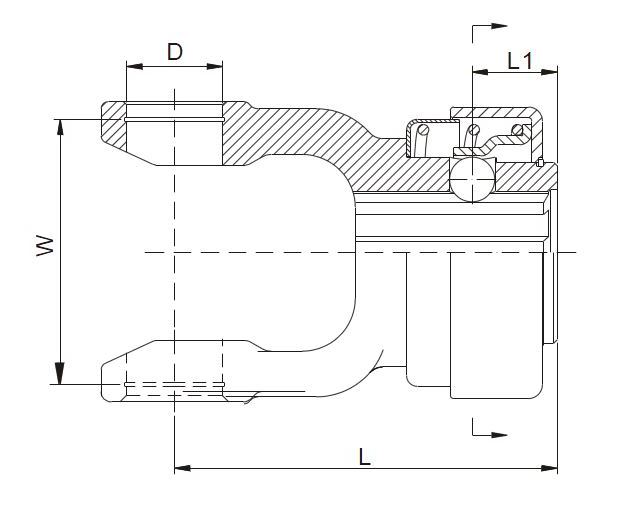

(inches) (millimeters)
P/N SERIES SPLINE DIM D DIM W DIM L DIM L1
R15401 1 1,3/8″ 6-Spline 22.0 54.0 94 24
R15402 1,3/8″ 21-Spline
R15403 2 1,3/8″ 6-Spline 23.8 61.3 102 24
R15404 1,3/8″ 21-Spline
R15405 3 1,3/8″ 6-Spline 27.0 70.0 106 24
R15406 1,3/8″ 21-Spline
R15407 4 1,3/8″ 6-Spline 27.0 74.6 108 24
R15408 1,3/8″ 21-Spline
R15409 5 1,3/8″ 6-Spline 30.2 80.0 113 24
R15410 1,3/8″ 21-Spline
R15411 6 1,3/8″ 6-Spline 30.2 92.0 120 24
R15412 1,3/8″ 21-Spline
R15413 7 1,3/8″ 6-Spline 30.2 106.5 125 24
R15414 1,3/8″ 21-Spline
R15415 7A 1,3/8″ 6-Spline 35.0 94.0 120 24
R15416 1,3/8″ 21-Spline
R15417 8 1,3/8″ 6-Spline 35.0 106.5 128 24
R15418 1,3/8″ 21-Spline
