CONSTANT VELOCITY ASSEMBLIES

Constant velocity assemblies are a simple and
reliable solution to problems frequently encountered
when making tight turns. Unlike standard drivelines,
a constant velocity assembly includes a plate
between the implement yoke and the pto shaft. This
plate allows for a greater turn angle of 50˚ or 80˚,
depending on which you choose, while still delivering
power to the implement safely.

Categories: ,

Description

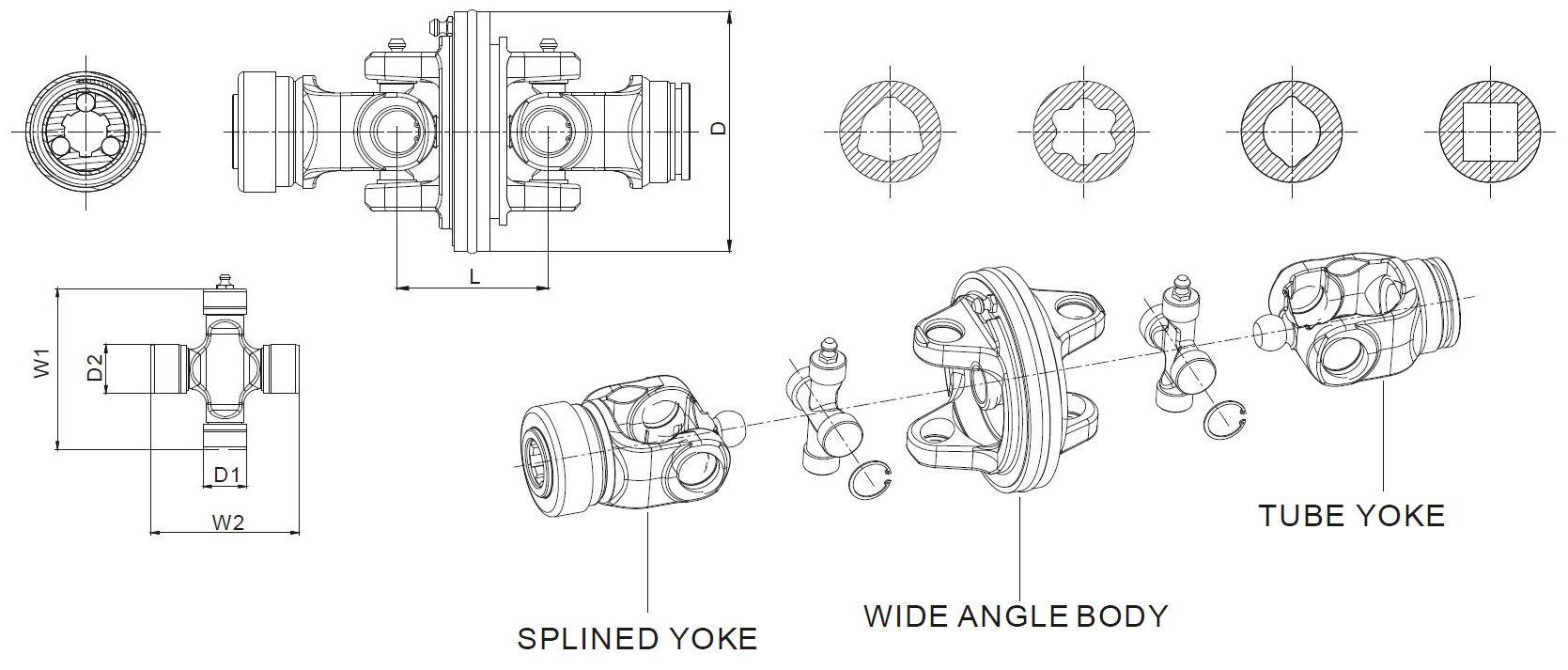

WIDE ANGLE BODY CROSS KIT SPLINED YOKE TUBE YOKE COMPLETE ASSEMBLY
(millimeters) (millimeters)
SERIES P/N DIM D DIM L P/N DIM D1 DIM W2 DIM D2 DIM W1 P/N P/N PROFILE P/N COMPONENTS
4CV R13111 145 102 R17304 Ø23.8 74.6 Ø27.0 91.0 R13121 R13131 TRILOBE R13201 R13111+R17304(x2)+R13121+R13131
R13132 STAR R13202 R13111+R17304(x2)+R13121+R13132
R13133 LEMON R13203 R13111+R17304(x2)+R13121+R13133
6CV R13112 175 120 R17306 Ø27.0 92.0 Ø30.2 100.0 R13122 R13134 TRILOBE R13204 R13112+R17306(x2)+R13122+R13134
R13135 STAR R13205 R13112+R17306(x2)+R13122+R13135
R13136 LEMON R13206 R13112+R17306(x2)+R13122+R13136
8CV R13113 190 127 R17308 Ø30.2 106.4 Ø35 106.0 R13123 R13137 TRILOBE R13207 R13113+R17308(x2)+R13123+R13137
R13138 STAR R13208 R13113+R17308(x2)+R13123+R13138
R13139 LEMON R13209 R13113+R17308(x2)+R13123+R13139
6ACV R13114 166 105 R17316 Ø27.0 76.0 Ø32.0 94.0 R13124 R13140 TRILOBE R13210 R13114+R17316(x2)+R13124+R13140
R13141 STAR R13211 R13114+R17316(x2)+R13124+R13141
R13142 LEMON R13212 R13114+R17316(x2)+R13124+R13142
8ACV R13115 190 127 R17318 Ø32.0 89.0 Ø36.0 106.0 R13125 R13143 TRILOBE R13213 R13115+R17318(x2)+R13125+R13143
R13144 STAR R13214 R13115+R17318(x2)+R13125+R13144
R13145 LEMON R13215 R13115+R17318(x2)+R13125+R13145



WIDE ANGLE BODY CROSS KIT SPLINED YOKE TUBE YOKE COMPLETE ASSEMBLY
(inches)
SERIES P/N P/N DIM D1 DIM W2 DIM D2 DIM W1 P/N P/N PROFILE P/N COMPONENTS
14RCV R13116 R17501 1,1/8″ 2,5/8″ 1,1/8″ 4,1/4″ R13126 R13146 SQUARE R13216 R13116+R17501(x2)+R13126+R13146
35RCV R13117 R17502 1,1/8″ 3,7/32″ 1,1/4″ 4,1/4″ R13127 R13147 SQUARE R13217 R13117+R17502(x2)+R13127+R13147
44RCV R13118 R17503 1,1/4″ 3,7/32″ 1,1/4″ 4,5/16″ R13128 R13148 SQUARE R13218 R13118+R17503(x2)+R13128+R13148
55RCV R13119 R17504 1,5/16″ 3,23/32″ 1,17/32″ 4,5/16″ R13129 R13149 SQUARE R13219 R13119+R17504(x2)+R13129+R13149
