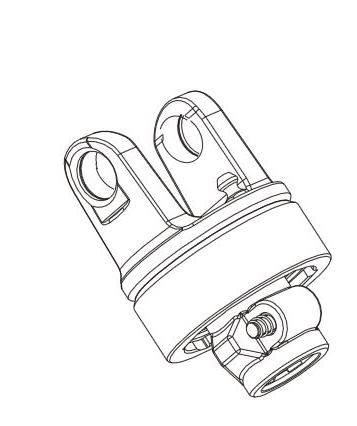

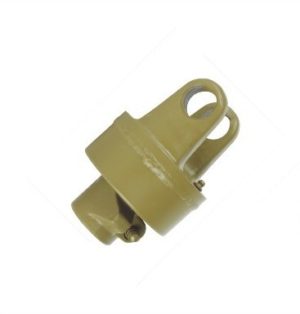

FREE WHEEL CLUTCH (OVERRUNNING CLUTCH) TYPE 1
FREE WHEEL CLUTCH (OVERRUNNING CLUTCH) TYPE 1 - Image 2
FREE WHEEL CLUTCH (OVERRUNNING CLUTCH) TYPE 1 - Image 3
FREE WHEEL CLUTCH (OVERRUNNING CLUTCH) TYPE 1 - Image 4
FREE WHEEL CLUTCH (OVERRUNNING CLUTCH) TYPE 1 - Image 5
, ,

FREE WHEEL CLUTCH (OVERRUNNING CLUTCH) TYPE 1

For equipment with a large moment of inertia, RPM’s
overrunning clutches are the ideal choice. The
overrunning clutch protects the tractor and other
equipment by allowing an implement to continue
rotating to stop once the driveline has ceased to rotate.

Categories: , ,

Description

(Nm) (inches) (millimeters)

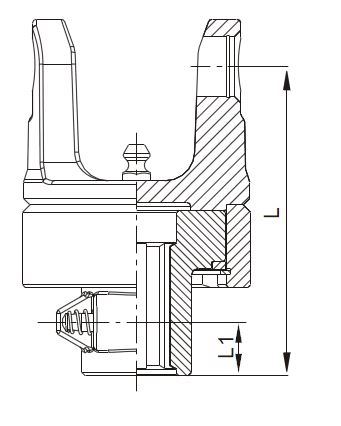

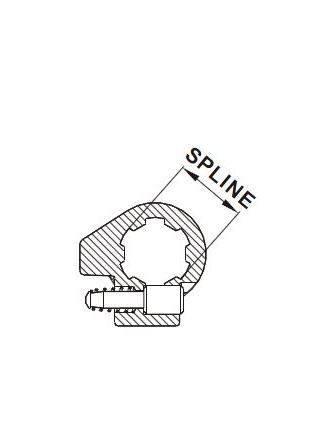

P/N SERIES MAX TORQUE SPLINE DIM L DIM L1
R16201 1 1800 1,3/8″ 6-Spline 125 24
R16202 2 2000 1,3/8″ 6-Spline 130 24
R16203 3 2400 1,3/8″ 6-Spline 132 24
R16204 4 2400 1,3/8″ 6-Spline 138 24
R16205 5 2400 1,3/8″ 6-Spline 141 24
R16206 6 2400 1,3/8″ 6-Spline 148 24
R16207 7A 2400 1,3/8″ 6-Spline 149 24
R16215 5 3500 1,3/8″ 6-Spline 160 24
R16216 6 3500 1,3/8″ 6-Spline 167 24
R16217 7A 3500 1,3/8″ 6-Spline 168 24
