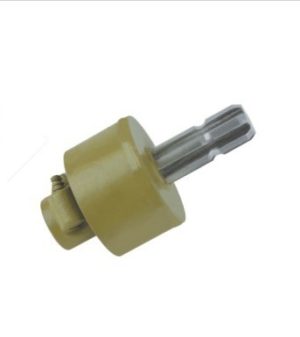

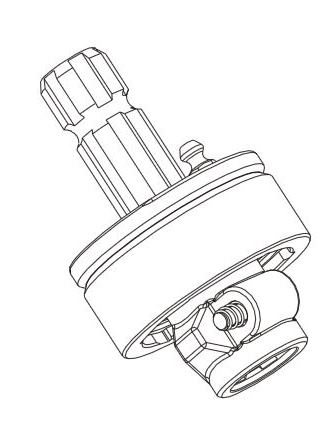

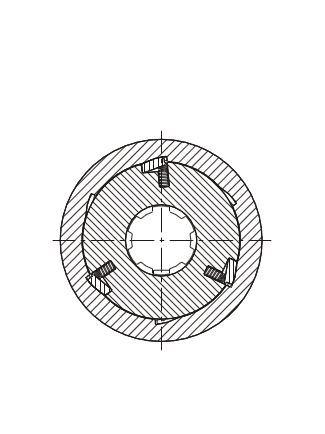

FREE WHEEL CLUTCH (OVERRUNNING CLUTCH) TYPE 2

For equipment with a large moment of inertia, RPM’s
overrunning clutches are the ideal choice. The
overrunning clutch protects the tractor and other
equipment by allowing an implement to continue
rotating to stop once the driveline has ceased to rotate.

Categories: , ,

Description

(Nm) (inches) (inches) (millimeters)

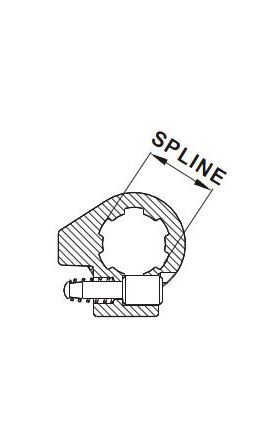

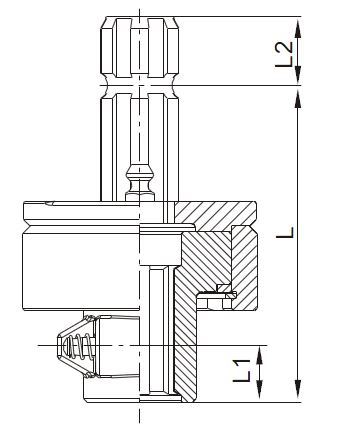

P/N SERIES MAX TORQUE MALE SPLINE FEMALE SPLINE DIM L DIM L1 DIM L2
R16231 N/A 2400 1,3/8″ 6-Spline 1,3/8″ 6-Spline 136 24 38
R16232 N/A 3500 1,3/8″ 6-Spline 1,3/8″ 6-Spline 155 24 38
