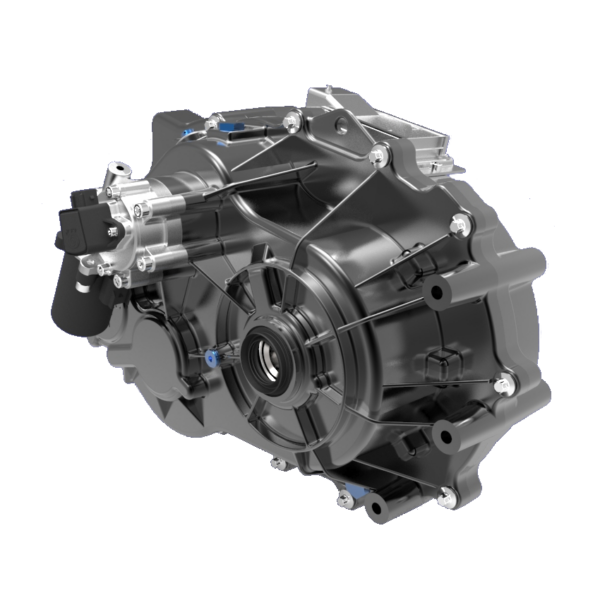

Gearbox F03T
- Smaller in size, lighter in weight
- Optional ratios, optimised integration with motor
| Max Input Torque: |
300Nm |
|
| Max Input Speed: |
15000rpm |
|
| Weight (dry): |
39.5kg |
|
| Center Distance: |
265mm |
|
| Reduction Ratio Range: |
5.20~13.35 |
|
| Peak Efficiency: |
≥97% |
|
| Application: |
Transversal |
|
| Fit with MAGELEC MGUs: |
M19Px |
M21Px |
| Differential Type: |
Open |
|
| Max Output Torque: |
4000Nm |
|
| Gear Type: |
Helical |
|
| Lubrication Type: |
Splash |
|
| Park Lock (Option): |
YES |
|
| Output Flange (Option): |
YES |
Seal Kits and Accessories
