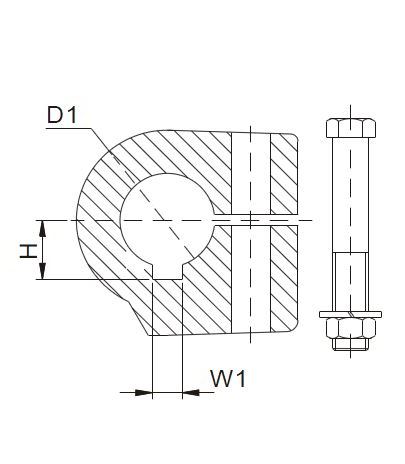

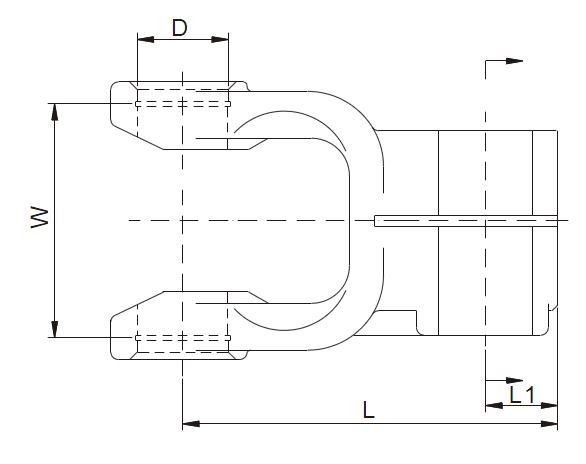

KEYWAY & CLAMP BOLT YOKES
Keyway plain bore yokes mate with the shaft
using a key. These come in a variety of sizes and
styles.
Description
|
(millimeters) |
| P/N |
SERIES |
DIM D1 |
DIM W1 |
DIM H |
DIM D |
DIM W |
DIM L |
DIM L1 |
| R15601 |
1 |
20 |
6 |
12.8 |
22.0 |
54.0 |
90 |
20 |
| R15602 |
30 |
8 |
18.3 |
| R15603 |
2 |
25 |
8 |
15.8 |
23.8 |
61.3 |
99 |
19 |
| R15604 |
30 |
8 |
18.3 |
| R15605 |
3 |
25 |
8 |
15.8 |
27.0 |
70.0 |
102 |
19 |
| R15606 |
35 |
10 |
20.8 |
| R15607 |
4 |
25 |
8 |
15.8 |
27.0 |
74.6 |
107 |
19 |
| R15608 |
32 |
8 |
19.3 |
| R15609 |
5 |
32 |
10 |
19.3 |
30.2 |
80.0 |
109 |
19 |
| R15610 |
5A |
32 |
10 |
19.3 |
32.0 |
76.0 |
109 |
19 |
| R15611 |
6 |
32 |
10 |
19.3 |
30.2 |
92.0 |
116 |
19 |
| R15612 |
45 |
14 |
26.3 |
126 |
29 |
| R15613 |
7A |
32 |
10 |
19.3 |
35.0 |
94.0 |
116 |
19 |
| R15614 |
40 |
10 |
23.3 |
| R15615 |
8 |
40 |
10 |
23.3 |
35.0 |
106.5 |
132 |
29 |
| R15616 |
45 |
14 |
26.3 |
