KEYWAY & THREADED HOLE YOKES

Keyway plain bore yokes mate with the shaft
using a key. These come in a variety of sizes and
styles.

Categories: , ,

Description

(millimeters)

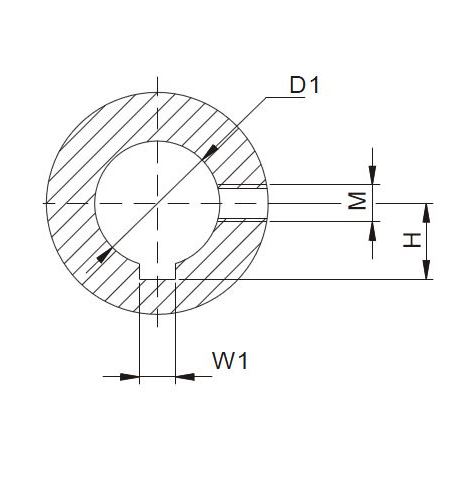

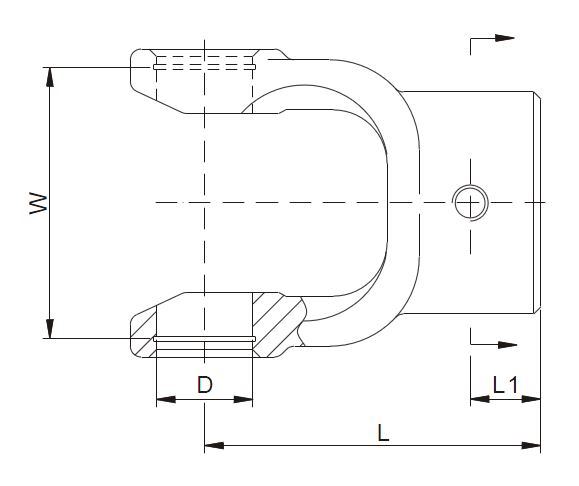

P/N SERIES DIM D1 DIM W1 DIM M DIM H DIM D DIM W DIM L DIM L1
R15561 1 20 6 M6 12.8 22.0 54.0 80 20
R15562 25 8 M8 15.8
R15563 2 25 8 M8 15.8 23.8 61.3 84 20
R15564 30 8 M8 18.3
R15565 3 30 8 M8 18.3 27.0 70.0 92 20
R15566 35 10 M10 20.8
R15567 4 30 8 M8 18.3 27.0 74.6 92 20
R15568 35 10 M10 20.8
R15569 5 30 8 M8 18.3 30.2 80.0 98 20
R15570 35 10 M10 20.8
R15571 5A 30 8 M8 18.3 32.0 76.0 98 20
R15572 35 10 M10 20.8
R15573 6 35 10 M10 20.8 30.2 92.0 106 20
R15574 40 12 M12 23.3
R15575 7 40 12 M12 23.3 30.2 106.5 117 25
R15576 45 14 M14 26.3
R15577 7A 40 12 M12 23.3 35.0 94.0 106 20
R15578 45 14 M14 26.3
R15579 8 40 12 M12 23.3 35.0 106.5 127 25
R15580 45 14 M14 26.3
