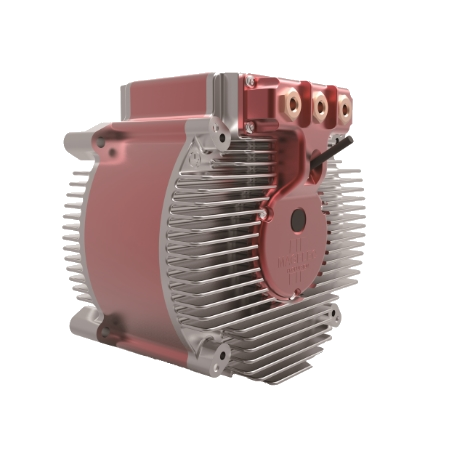

Motor M13Cx-S
- High torque and power density
- Low cogging torque, low rotor inertia
- Air cooling

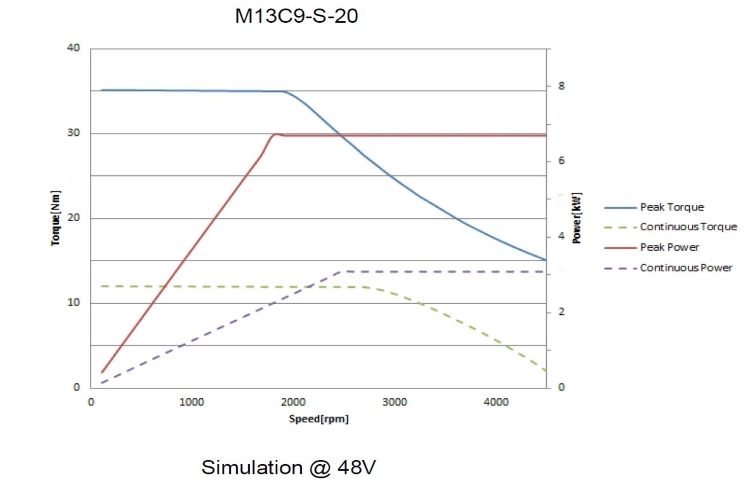

| Torque Cont: | 12Nm | |
| Torque Peak: | 35Nm | |
| Power Cont: | 3kW | |
| Power Peak: | 6.7kW | |

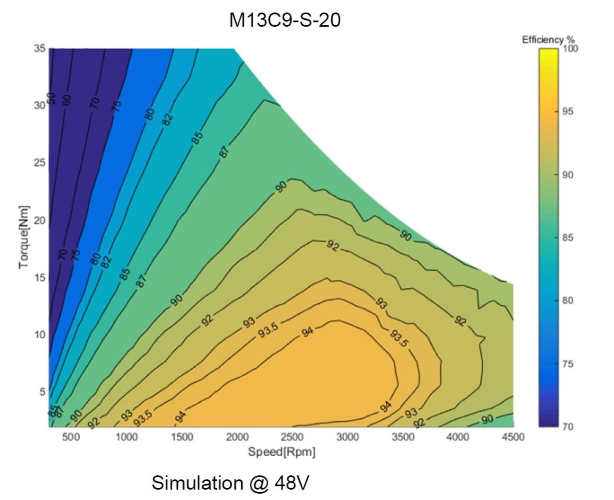

| Efficiency Peak: | >94% | |
| Speed Max: | 4500rpm | |
| Mass: | 9kg |
