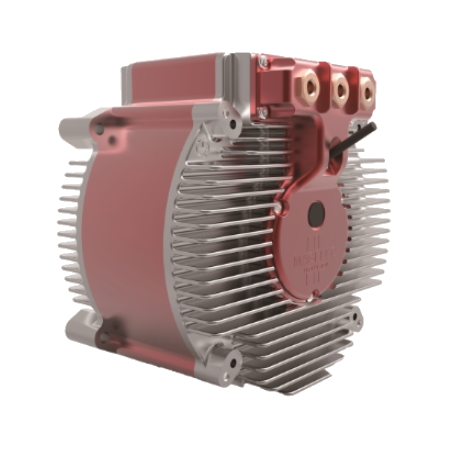

Motor M15Cx-S
- High torque and power density
- Low cogging torque, low rotor inertia
- Air cooling

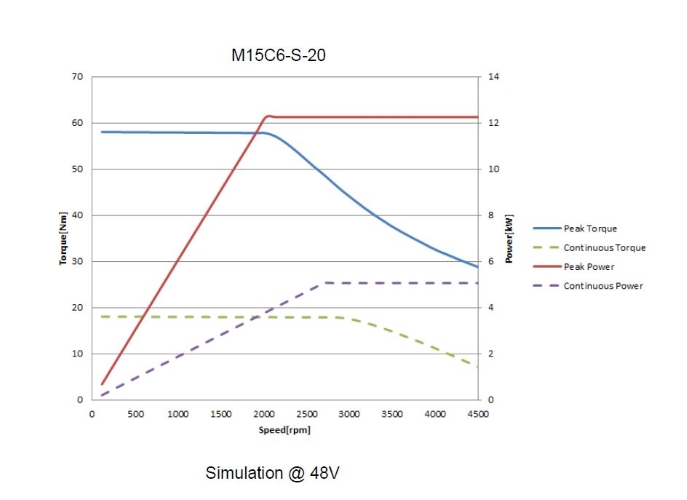

| Torque Cont: | 18Nm | |
| Torque Peak: | 58Nm | |
| Power Cont: | 5kW | |
| Power Peak: | 12.3kW | |

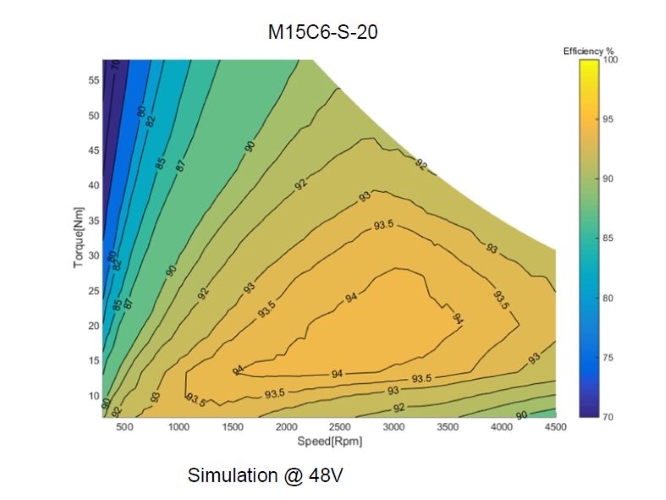

| Efficiency Peak: | >94% | |
| Speed Max: | 4500rpm | |
| Mass: | 12kg |
