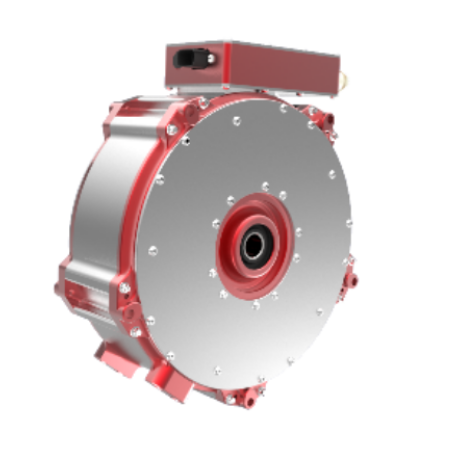

Motor M24Px-S
- High voltage
- Distributed winding
- Traction specification
- Water cooling
| Torque Cont: | 162Nm | |
| Torque Peak: | 368Nm | |
| Power Cont: | 75kW | (600V 5Turns) |
| Power Peak: | 161kW | (600V 5Turns) |
| Efficiency Peak: | >95% | |
| Speed Max: | 9000rpm | |

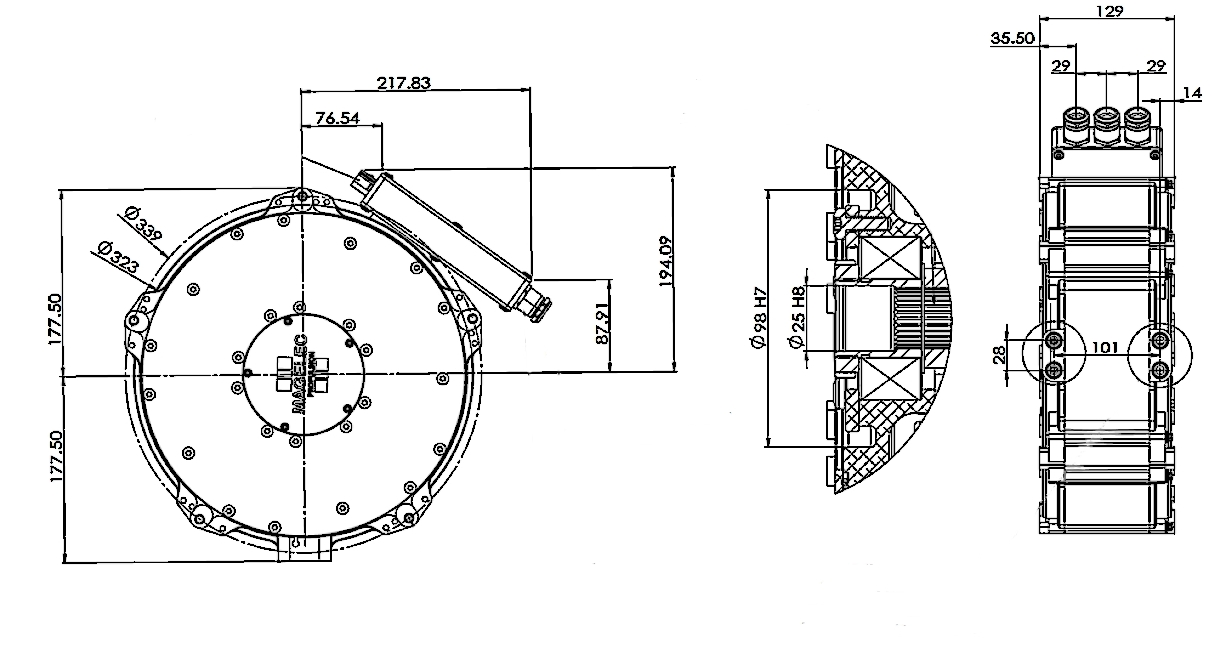

| Case Φ: | 323mm | |
| Case L: | 129mm | |
| Mass: | 31.5kg |
