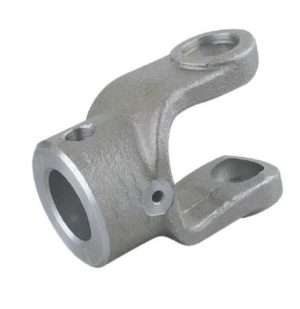

PIN HOLE & THREADED HOLE YOKES

The pin hole yoke is a type of plain bore yoke that uses a
single pin to engage the shaft of the implement. When
this pin shears due to a high torque peak, power is
disengaged and no further harm is caused to the
equipment. After removing the shaft and inspecting for
any other damage, the pin can be easily replaced and the
operator can run his machine once again.

Categories: ,

Description

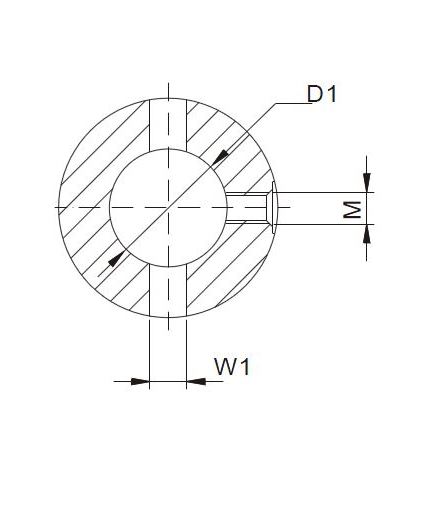

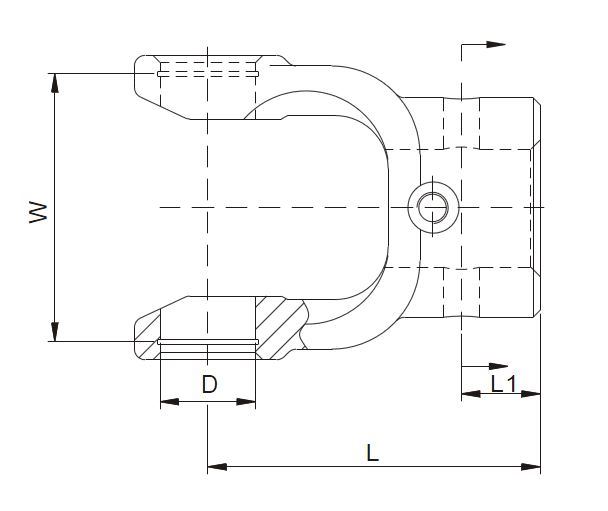

(millimeters)
P/N SERIES DIM D1 DIM W1 DIM M DIM D DIM W DIM L DIM L1
R15651 1 31.8 10 M6 22.0 54.0 80 18.5
R15652 2 30.0 10 M6 23.8 61.3 84 15
R15653 3 30.0 10 M6 27.0 70.0 92 20
R15654 4 31.8 10 M6 27.0 74.6 92 20
R15655 5 35.0 13 M8 30.2 80.0 98 20
R15656 5A 35.0 13 M8 32.0 76.0 98 20
R15657 6 35.0 13 M8 30.2 92.0 106 20
R15658 7 40.0 13 M10 30.2 106.5 117 25
R15659 7A 40.0 13 M10 35.0 94.0 106 20
R15660 8 42.0 13 M10 35.0 106.5 127 25
