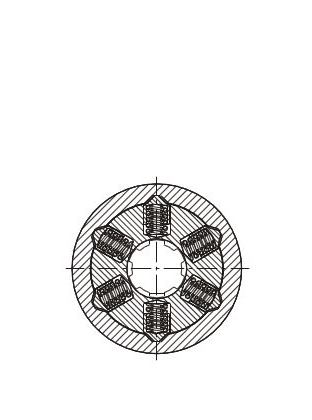

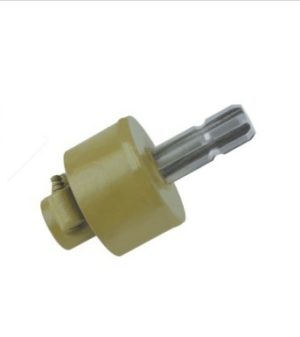

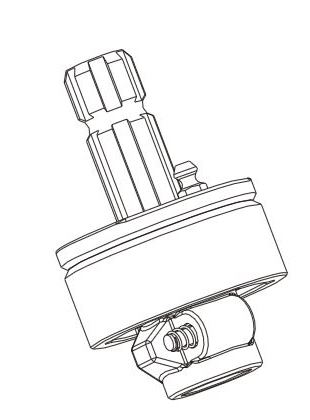

RADIAL PIN CLUTCH (RATCHET CLUTCH) TYPE 2
RADIAL PIN CLUTCH (RATCHET CLUTCH) TYPE 2 - Image 2
RADIAL PIN CLUTCH (RATCHET CLUTCH) TYPE 2 - Image 3
RADIAL PIN CLUTCH (RATCHET CLUTCH) TYPE 2 - Image 4
RADIAL PIN CLUTCH (RATCHET CLUTCH) TYPE 2 - Image 5
, ,

RADIAL PIN CLUTCH (RATCHET CLUTCH) TYPE 2

Radial pin clutches protect equipment by
interrupting the power flow in the event of a
high torque peak. These also produce an audible
noise that help alert the operator.

Categories: , ,

Description

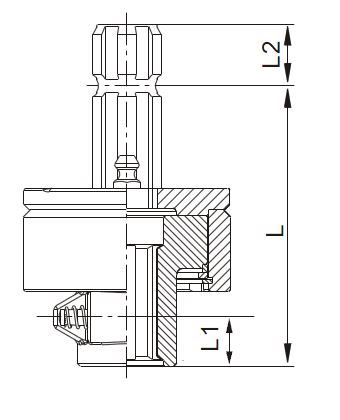

(Nm) (inches) (inches) (millimeters)

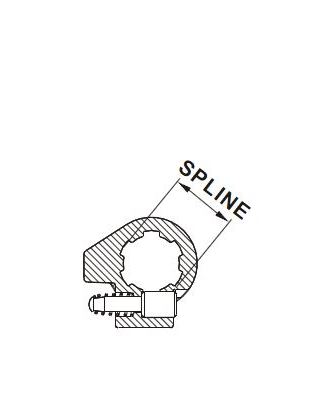

P/N SERIES MAX TORQUE MALE SPLINE FEMALE SPLINE DIM L DIM L1 DIM L2
R16351 N/A 400 1,3/8″ 6-Spline 1,3/8″ 6-Spline 136 24 38
R16352 N/A 800 1,3/8″ 6-Spline 1,3/8″ 6-Spline 155 24 38
R16353 N/A 1200 1,3/8″ 6-Spline 1,3/8″ 6-Spline 161 20 38
