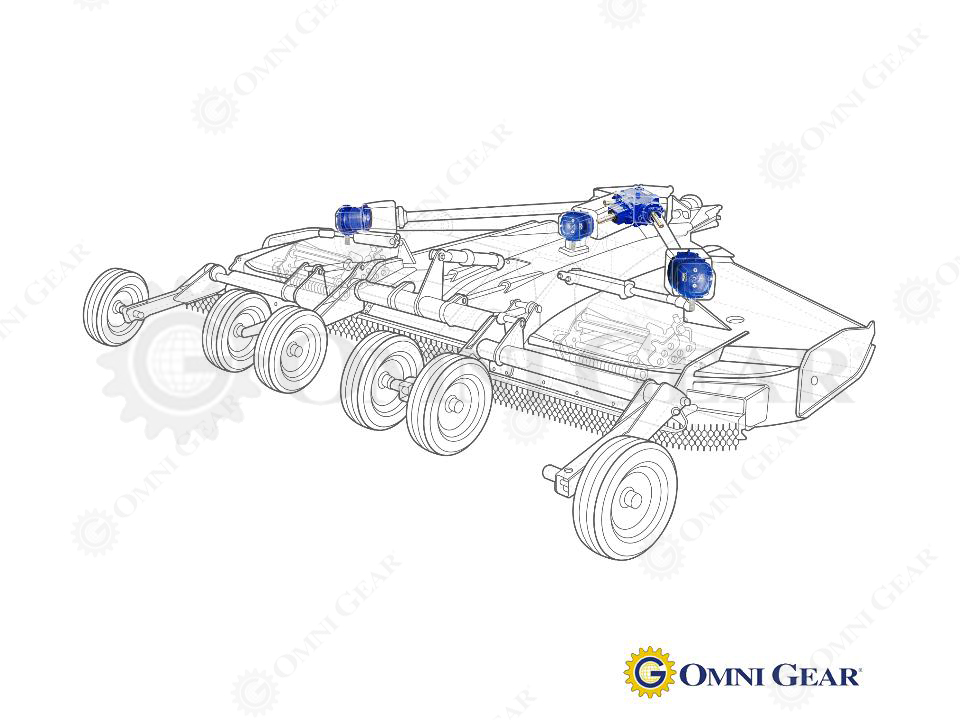

Rotary Cutter Drive

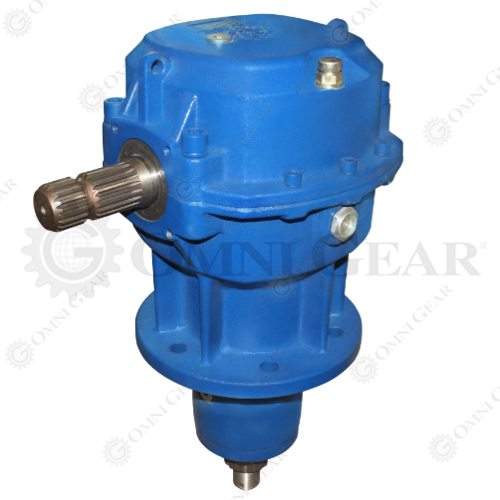

Rotary Cutter Drive - Image 2

Rotary Cutter Drive

Omni Gear Round Head Cutters = High Quality!

Look for the round head!

Gearbox Features:

  • Feed Blenders
  • Flail Mowers
  • Potato Harvesters
  • Pump Drives
  • Rock Pickers
Categories: , Tag:

Description

RC Series

Model HP Rating Torque Rating (InLbs) Standard Ratios Weight (lbs) Cutter Box Divider Box
RC-20 15 – 18 1,750 – 3,267 1:2.5, 1:2.83 34 x
RC-27 25 – 53 2,683 – 6,183 1:2.5, 1:2.83 47 x
RC-30 24 – 40 2,800 – 4,667 1:1.47, 1:1.71, 1:1.93 51 x
RC-51 24 – 40 2,800 – 4,667 1:1.47, 1:1.71, 1:1.93 56 x
RC-61 35 – 72 4,083 – 8,400 1.46:1, 1.21:1, 1:1, 1:1.21 70 x
RC-71 35 – 83 4,083 – 9,683 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.93 83 x
RC-81 47 – 104 5,483 – 9,683 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.92 98 x
RC-100 53 – 144 6,183 – 16,800 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.92 89 x –
RC-100L 53 – 144 6,183 – 16,800 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.92 105 x –
RC-130 61 – 171 7,117 – 19,950 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.92 109 x
RC-130L 61 – 171 7,117 – 19,950 1.21:1, 1:1:, 1:1.21, 1:1.46, 1:1.92 120 x
RC-170 x x 1.21:1, 1:1:, 1:1.21, 1:1.46 x x
RC-91 120 – 160 14,000 – 18,667 1.21:1, 1:1.46 191 x
RC-40T 16 – 23 1,867 – 2,683 1:1.07 45 x
RC-110 120 – 160 14,000 – 18,667 1.2:1, 1:1.46 140 x
RC-130T 153 – 262 17,850 – 30,567 1.88:1, 1:1, 1:1.88, 1:1.93 125 x
RC-130TL 153 – 262 17,850 – 30,567 1.88:1, 1:1.93 176 x
RC-130TLO 153 – 262 17,850 – 30,567 1.88:1, 1:1.93 173 x
RC-130TS 133 – 262 17,850 – 30,567 1.88:1, 1:1.93, 1:2.25 165 x
RC-130TSO 133 – 262 15,517 – 30,567 1.88:1, 1:1.93, 1:2.25 165 x

RCD Series

Model HP Rating Torque Rating (InLbs) Standard Ratios Weight (lbs) Cutter Box Divider Box
RCD-90 44 – 130 5,133 – 15,167 1.3:1, 1.2:1, 1:1, 1:1.15, 1:1.2 80 x
RCD-101 92 – 227 10,733 – 26,483 1.3:1, 1:1, 1:1.15, 1:1.2 131 x

Seal Kits and Accessories
