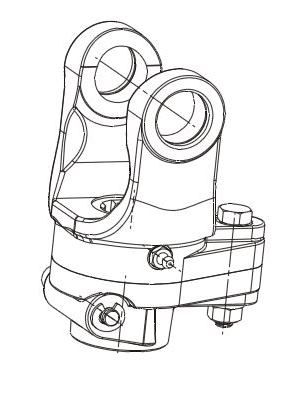

SHEAR BOLT CLUTCH ONE PIN

One of the most economical ways to protect
equipment from dangerous torque peaks is our
shear bolt yoke. The bolt acts as a link connecting
power from the tractor to the implement. Once the
bolt shears the link is lost and power is no longer
transmitted to the equipment. After the bolt is
effortlessly replaced the operator can return to his
work with little time lost.

Categories: , ,

Description

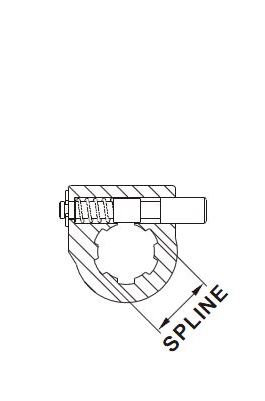

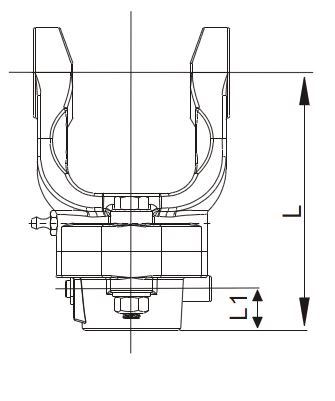

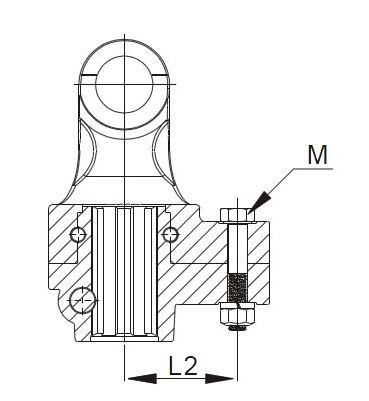

(Nm) (inches) (millimeters)
P/N SERIES MAX TORQUE SPLINE DIM L DIM L1 DIM L2 DIM M
R16401 1 650 1,3/8″ 6-Spline 95 19 45 M6 x 40
R16402 1 650 1,3/8″ 6-Spline 95 19 35 M6 x 40
R16403 2 900 1,3/8″ 6-Spline 99 19 45 M6 x 40
R16404 2 920 1,3/8″ 6-Spline 99 19 48 M6 x 40
R16405 3 1280 1,3/8″ 6-Spline 102 19 38 M8 x 45
R16406 3 1300 1,3/8″ 6-Spline 102 19 40 M8 x 45
R16407 4 1480 1,3/8″ 6-Spline 107 19 48 M8 x 45
R16408 4 1700 1,3/8″ 6-Spline 107 19 55 M8 x 45
R16409 5 1800 1,3/8″ 6-Spline 111 21 55 M8 x 50
R16410 5 2100 1,3/8″ 6-Spline 111 21 46 M10 x 50
R16411 6 2100 1,3/8″ 6-Spline 137 22 60 M8 x 55
R16412 6 2500 1,3/8″ 6-Spline 137 22 55 M10 x 55
