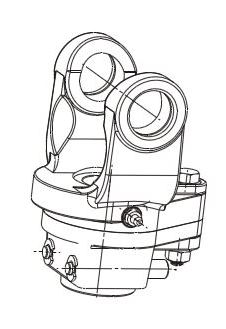

SHEAR BOLT CLUTCH TWO PINS

One of the most economical ways to protect
equipment from dangerous torque peaks is our
shear bolt yoke. The bolt acts as a link connecting
power from the tractor to the implement. Once the
bolt shears the link is lost and power is no longer
transmitted to the equipment. After the bolt is
effortlessly replaced the operator can return to his
work with little time lost.

Categories: , ,

Description

(Nm) (inches) (millimeters)

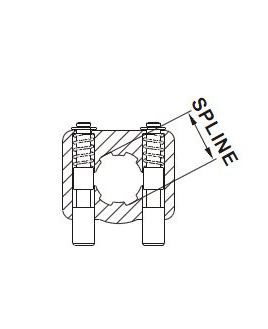

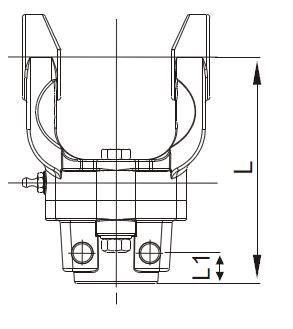

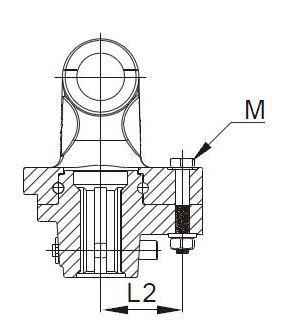

P/N SERIES MAX TORQUE SPLINE DIM L DIM L1 DIM L2 DIM M
R16421 7 2500 1,3/8″ 6-Spline 143 22 45 M10 x 60
R16422 7 3000 1,3/8″ 6-Spline 143 22 49 M12 x 60
R16423 7A 2500 1,3/8″ 6-Spline 139 20 50 M10 x 60
R16424 7A 3000 1,3/8″ 6-Spline 139 20 46 M12 x 60
R16425 8 3000 1,3/8″ 6-Spline 148 22 60 M10 x 60
R16426 8 3500 1,3/8″ 6-Spline 148 22 57 M12 x 60
R16427 8 3500 1,3/4″ 6-Spline 148 22 60 M10 x 60
R16428 8 3500 1,3/4″ 6-Spline 148 22 57 M12 x 60
R16429 8B 3500 1,3/8″ 6-Spline 147 20 60 M10 x 60
