STAR YOKE

Tube yokes are used to connect the steel tube to the
implement, or tractor, yoke. These come in a variety of
sizes and profiles to guarantee a proper fit for your
driveline.

Categories: , ,

Description

(millimeters)

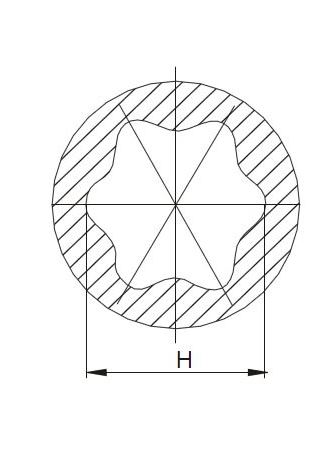

P/N SERIES TYPE DIM D DIM W DIM L DIM H
R15115 1 INNER 22.0 54.0 80 26.6
R15116 1 OUTER 22.0 54.0 80 32.4
R15117 2 INNER 23.8 61.3 84 29.0
R15118 2 OUTER 23.8 61.3 84 36.1
R15119 3 INNER 27.0 70.0 92 36.1
R15120 3 OUTER 27.0 70.0 92 43.4
R15121 4 INNER 27.0 74.6 92 36.1
R15122 4 OUTER 27.0 74.6 92 43.4
R15123 5 INNER 30.2 80.0 98 44.7
R15124 5 OUTER 30.2 80.0 98 51.3
R15125 6 INNER 30.2 92.0 106 44.7
R15126 6 OUTER 30.2 92.0 106 53.6
R15127 7 INNER 30.2 106.5 117 44.7
R15128 7 OUTER 30.2 106.5 117 53.6
R15129 8 INNER 35 106.5 127 53.6
R15130 8 OUTER 35 106.5 127 62.7
R15201 5A INNER 32 76 98 44.7
R15202 5A OUTER 32 76 98 51.3
R15203 7A INNER 35 94 106 44.7
R15204 7A OUTER 35 94 106 53.6
R15205 8B INNER 38 104 109 53.6
R15206 8B OUTER 38 104 109 62.7
