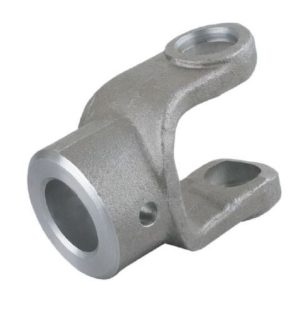

VERTICAL PIN HOLE YOKES

The pin hole yoke is a type of plain bore yoke that uses a
single pin to engage the shaft of the implement. When
this pin shears due to a high torque peak, power is
disengaged and no further harm is caused to the
equipment. After removing the shaft and inspecting for
any other damage, the pin can be easily replaced and the
operator can run his machine once again.

Categories: , ,

Description

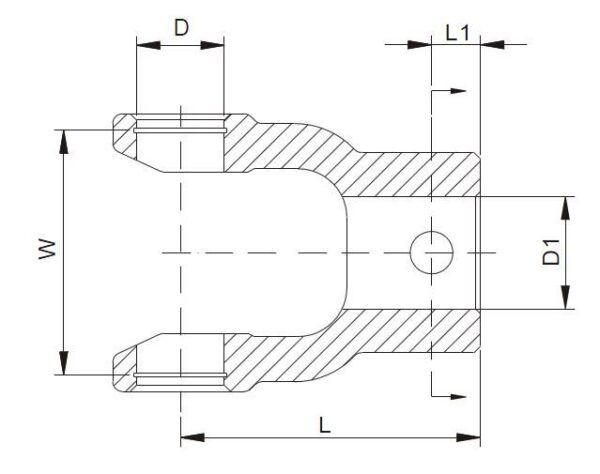

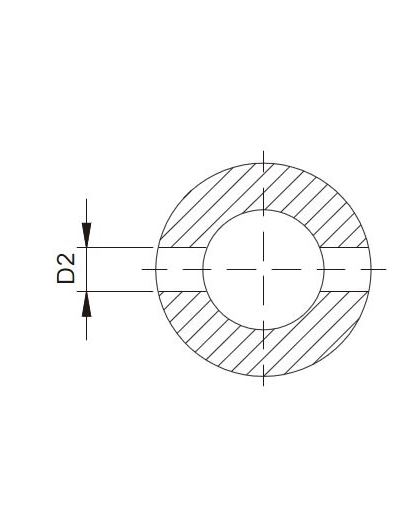

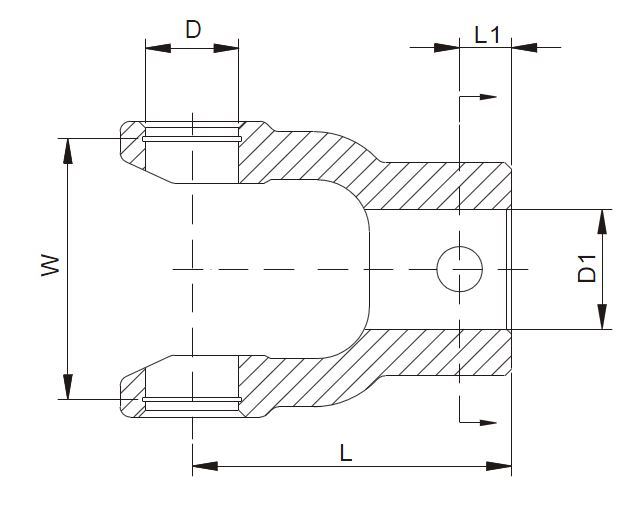

(millimeters)
P/N SERIES DIM D1 DIM D2 DIM D DIM W DIM L DIM L1
R15631 1 31.8 10 22.0 54.0 80 18.5
R15632 2 30.0 10 23.8 61.3 84 20
R15633 3 31.8 10 27.0 70.0 92 20
R15634 4 31.8 10 27.0 74.6 92 20
R15635 5 35.0 13 30.2 80.0 98 20
R15636 5A 35.0 13 32.0 76.0 98 20
R15637 6 35.0 13 30.2 92.0 106 20
R15638 7 40.0 13 30.2 106.5 117 25
R15639 7A 40.0 13 35.0 96.0 106 20
R15640 8 42.0 13 35.0 106.5 127 25
